1. Introduction

This introduction will show how to use mecoSHARK. Furthermore, we list all requirements for this tool here, so that an easy installation is possible.

mecoSHARK collects over 70 different static product metrics and over 15 different code clone metrics. A full list of the calculated metrics can be found in our database documentation. Furthermore, mecoFoo detects type-2 clones in the code.

The tool works on a revision of a repository, where vcsSHARK was executed beforehand. Generally, mecoSHARK works in two phases: first, the programming language of the project is automatically detected by using sloccount. If a given threshold is reached (% of files that are written in a certain programming language), we execute the metrics calculator and clone parser for this kind of programming language. Currently, we support Java and Python. Second, the results are parsed and stored in the MongoDB using the mongoengine ORM library.

For the metrics calculation and clone detection we use sourcemeter. Additionally, SourceMeter provides the option to build the project via Ant or Maven and calculate the metrics afterwards. We have implemented, but currently disabled, this feature in mecoSHARK, as it is not tested in-depth.

We use a vanilla Ubuntu 16.04 operating system as basis for the steps that we describe. If necessary, we give hints on how to perform this step with a different operating system.

Warning

This software is still in development.

1.1. Model Documentation

The documentation for the used database models can be found here: https://smartshark.github.io/pycoSHARK/api.html

1.2. Installation

The installation process needs a little bit more effort, as sourcemeter can not be publicly distributed. For a vanilla Ubuntu 16.04, we need to install the following packages:

$ sudo apt-get install git python3-pip python3-cffi

You also need to install JAVA. For more information follow this link: https://wiki.ubuntuusers.de/Java/Installation

After these requirements are met, first clone the mecoSHARK repository repository to a folder you want. In the following, we assume that you have cloned the repository to ~/mecoSHARK. Afterwards, the installation of mecoSHARK can be done in two different ways:

1.2.1. via Pip

$ sudo pip3 install https://github.com/smartshark/mecoSHARK/zipball/master --process-dependency-links

1.2.2. via setup.py

$ sudo python3.5 ~/mecoSHARK/setup.py install

Note

It is advisable to change the location, where the logs are written to. They can be changed in the ~/mecoSHARK/mecoshark/loggerConfiguration.json. There are different file handlers defined. Just change the “filename”-attribute to a location of your wish.

Afterwards, you need to download sourcemeter and create the following structure:

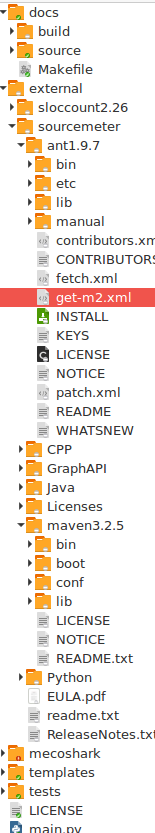

Overall structure:

_images/folder_structure.png

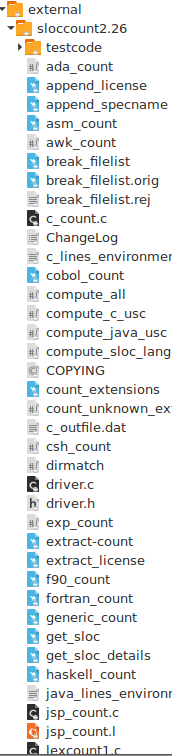

Sloccount structure:

_images/sloccount.png

Warning

Make sure, that your $JAVA_HOME is set correctly!

Warning

Make sure, that /external/sloccount2.26 is in your $PATH.

Furthermore, you need a running MongoDB. The process of setting up a MongoDB is explained here: https://docs.mongodb.com/manual/installation/

1.3. Tests

The tests of mecoSHARK can be executed by calling

$ python3.5 ~/mecoSHARK/setup.py test

The tests can be found in the folder “tests”.

Warning

The generated tests are not fully complete. They just test the basic functionality.

1.4. Execution

In this chapter, we explain how you can execute mecoSHARK. Furthermore, the different execution parameters are explained in detail.

  1. Choose a project from which you want to collect metrics

  2. Clone this project

  3. Make sure that your MongoDB is running!

    $ sudo systemctl status mongodb

  4. Execute vcsSHARK on this project

  5. Set the project you want to analyze to a specific revision

  6. Execute mecoSHARK by calling

    $ python3.5 ~/mecoSHARK/main.py

mecoSHARK supports different commandline arguments:

--help, -h

shows the help page for this command

--version, -v

shows the version

--db-user <USER>, -U <USER>

Default: None

mongodb user name

--db-password <PASSWORD>, -P <PASSWORD>

Default: None

mongodb password

--db-database <DATABASENAME>, -DB <DATABASENAME>

Default: smartshark

database name

--db-hostname <HOSTNAME>, -H <HOSTNAME>

Default: localhost

hostname, where the mongodb runs on

--db-port <PORT>, -p <PORT>

Default: 27017

port, where the mongodb runs on

--db-authentication <DB_AUTHENTICATION> -a <DB_AUTHENTICATION>

Default: None

name of the authentication database

--ssl

enables ssl for the connection to the mongodb

--debug <DEBUG_LEVEL>, -d <DEBUG_LEVEL>

Default: DEBUG

Debug level (INFO, DEBUG, WARNING, ERROR)

--repository_url <URL>, -u <URL>

Required

URL of the project (e.g., https://github.com/smartshark/mecoSHARK)

--revision <REVISION_HASH>, -r <REVISION_HASH>

Required

Hash of the revision that is analyzed

--input <PATH>, -i <PATH>

Required

Path to the repository that should be analyzed

--output <PATH>, -o <PATH>

Required

Path to a folder that can be used as output

--makefile-contents

Default: None

Contents of the makefile (only for c/c++/c#), e.g., “./configurenmake”.

1.5. Tutorial

In this section we show step-by-step how you can store metrics of the Zookeeper project in the MongoDB

1. First, you need to have a mongodb running (version 3.2+). How this can be achieved is explained here: https://docs.mongodb.org/manual/.

Warning

Make sure, that you activated the authentication of mongodb (mecoSHARK also works without authentication, but with authentication it is much safer!). Hints how this can be achieved are given here.

  1. Add zookeeper to the projects table in MongoDB.

    $ mongo
$ use smartshark
$ db.project.insert({"name": "Zookeeper"})

  2. Install vcsSHARK

  3. Enter the vcsSHARK directory via

    $ cd vcsSHARK

  4. Clone the Zookeeper repository to your home directory (or another place)

    $ git clone https://github.com/apache/zookeeper ~/Zookeeper

  5. Execute vcsSHARK:

    $ cd ~/vcsSHARK
$ python3.5 ~/vcsSHARK/vcsshark.py -D mongo -DB smartshark -H localhost -p 27017 -n Zookeeper --path ~/Zookeeper

  6. Set Zookeeper to the revision: edf75b5e31f0d9e2fbfadbd95bae9d1d6c4737f6

    $ cd ~/Zookeeper
$ git reset --hard edf75b5e31f0d9e2fbfadbd95bae9d1d6c4737f6

  1. Install mecoSHARK. An explanation is given above.

  2. Enter the mecoSHARK directory via

    $ cd ~/mecoSHARK

  3. Test if everything works as expected

    $ python3.5 main.py --help

    Note

    If you receive an error here, it is most likely, that the installation process failed.

  4. Create an empty directory

    $ mkdir ~/temp

  1. Execute mecoSHARK:

    $ cd ~/mecoSHARK
$ python3.5 main.py -i ~/Zookeeper -o ~/temp -r edf75b5e31f0d9e2fbfadbd95bae9d1d6c4737f6 -u https://github.com/apache/zookeeper

Thats it. The results are explained in the database documentation of SmartSHARK.
